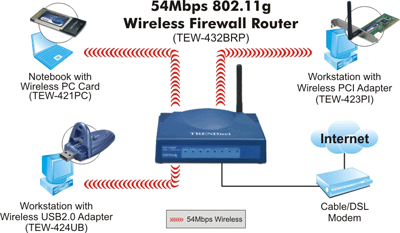

TRENDNET 54Mbps 802.11g Wireless Firewall Router

Manufacturer: TRENDnet
SKU: TEW-432BRP

Description

TRENDNET 54Mbps 802.11g Wireless Firewall Router

Wi-Fi Compliant with IEEE 802.11g and 802.11b Devices

Built-in 4 x 10/100Mbps Auto-MDIX LAN Ports

Built-in 1 x 10/100Mbps Auto-MDIX WAN Port (Internet) Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE, or PPTP

Connection Types

DHCP Server Feature Allocates up to 253 Client IP Addresses

Supports 64/128-bit Wired Equivalent Privacy (WEP)

Supports 802.1x/WPA, WPA-PSK, TKIP/AES for Advance Security

Supports MAC Address, Protocol Filters and UPnP (Universal Plug & Play)

Traffic Control with Virtual Server, Virtual PC mapping and DMZ

Provides Additional Security with SPI / NAT firewall and Attack Alert via emails

Provides Additional Security of Enable/Disable SSID, Password Protection

Supports Static and Dynamic Routing

Flash Memory for Firmware Upgrade, Save/Restore Settings, and Traffic Log

Compliant with Windows 95/98/NT/2000/XP, Linux and Mac OS

Easy Management via Web Browser (HTTP) and Remote Management

Range for Indoor of 30 ~ 50 meters (depends on the environment)

Range for Outdoor of 50 ~ 200 meters (depends on the environment)

3-Year Warranty

Specifications

Hardware

Standards Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), ANSI/IEEE 802.3 Auto Negotiation
Wireless: IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps)

WAN 1 x 10/100Mbps Auto-MDIX Port (Internet)

LAN 4 x 10/100Mbps Auto-MDIX Port

Connection Type Dynamic IP, Static (Fixed) IP, PPPoE, PPTP

Supported Network Protocols TCP/IP, NAT, PPPoE/PPTP, HTTP, DHCP Server/Client

LED Indicator
Power, System, WLAN: ACT
WAN: Link, ACT & Speed; LAN: Link, ACT & Speed

Dimension (L x W x H) 147 x 115 x 35 mm (5.8 x 4.5 x 1.4 inches)

Weight 226g.(8 oz.)

Temperature Operation: 0°~ 40°C (32°F~ 104°F)
Storage: -10°~ 70°C (14°F~ 158°F)

Humidity Max. 95% (Non-Condensing)

Power Adapter 5V DC, 2.5A External Power Adapter

Certification FCC & CE

Wireless

Frequency 2.412 to 2.484GHz (Industrial Scientific Medical Band)

Module Technique 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM

Antenna 1 x 2dBi External Detachable Dipole Antenna (Female Reverse SMA Connector)

Media Access Protocol CSMA/CA with ACK

Security 64/128-bit WEP, 802.1X/ WPA, WPA-PSK, MAC Address Filter, Protocol Filter

Transmit Power 13 dBm (typically)

Data Rate 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

Receiving Sensitivity 11Mbps 10 – 5 BER @ -85 dBm (typical)
54Mbps 10 – 5 BER @ -70 dBm (typical)

Channels 11 Channels (US), 13 Channels (EU)

Networking Solution
